16 October 2022

Using AWS Cloud9 as a Bastion Host

by John Lukach

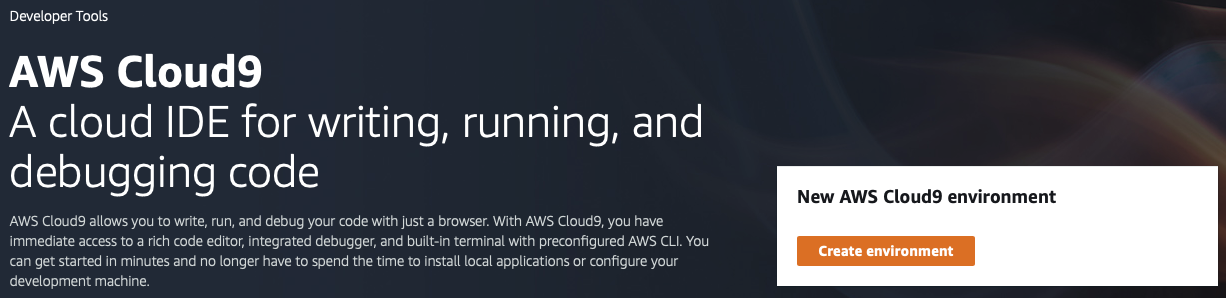

1-AWS-Cloud9-IDE

I originally wrote a blog post about getting rid of my local development environment that used AWS Cloud Development Kit (CDK) in October 2020. I figured it was time to provide an updated configuration on using AWS CLoud9 as a Bastion Host.

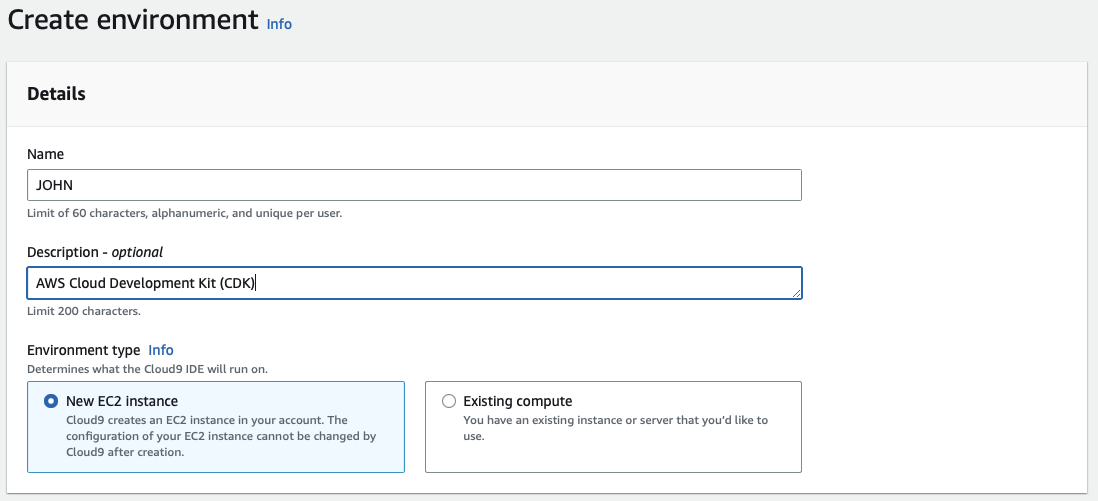

2-Name-Environment

Create a no-ingress EC2 instance for simplified environment access via System Manager using a t3.small running Amazon Linux 2 with a thirty-minute timeout.

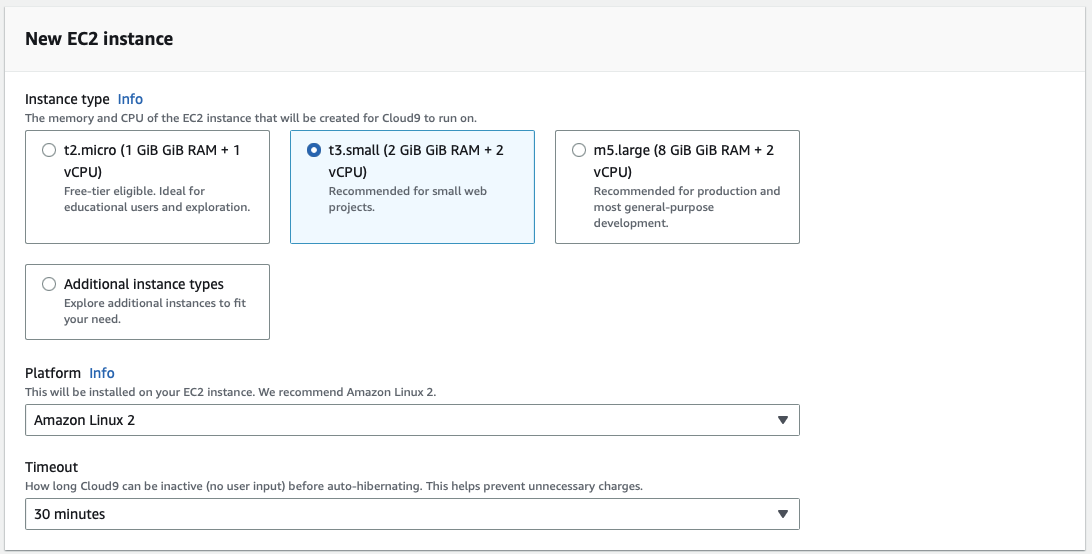

3-Configure-Settings-One

Another benefit of using Cloud9 is it takes care of the Identity Access Management (IAM) and Network connectivity to my cloud environment.

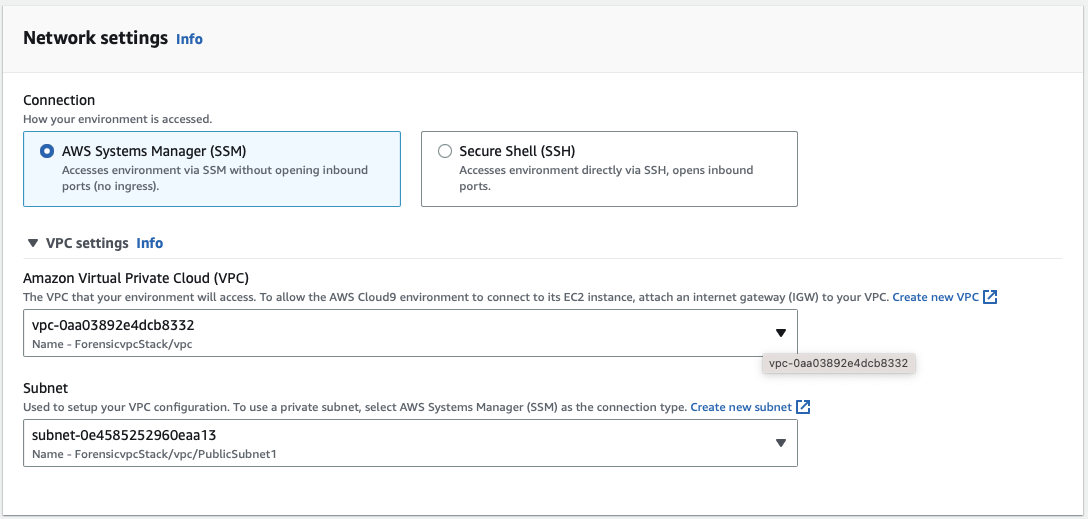

4-Configure-Settings-Two

All set to create the bastion host!

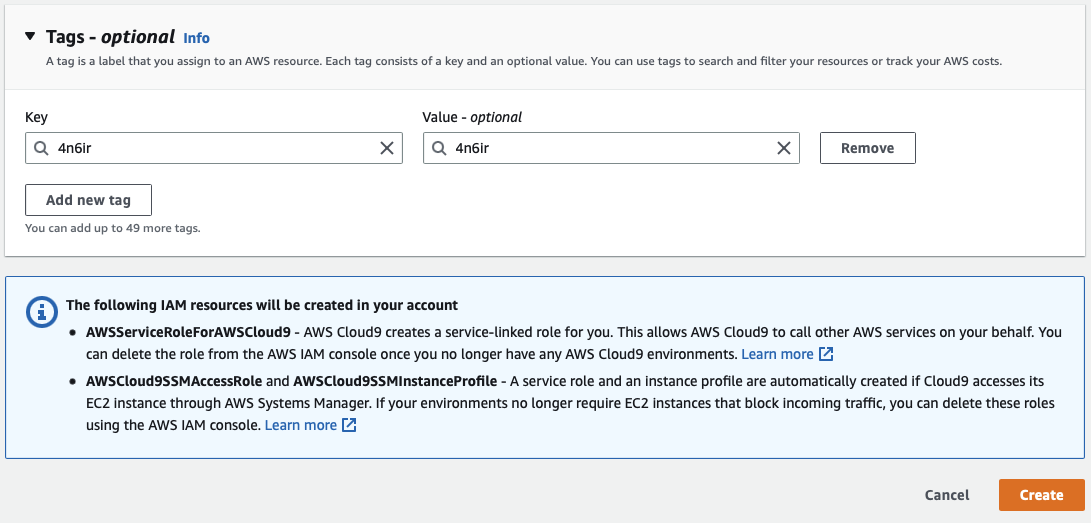

5-Create-Environment

Cloud Development Kit (CDK) typically has regular weekly updates.

$ npm install -g aws-cdk
npm ERR! code EEXIST
npm ERR! path /home/ec2-user/.nvm/versions/node/v16.17.1/bin/cdk
npm ERR! EEXIST: file already exists
npm ERR! File exists: /home/ec2-user/.nvm/versions/node/v16.17.1/bin/cdk
npm ERR! Remove the existing file and try again, or run npm
npm ERR! with --force to overwrite files recklessly.

npm ERR! A complete log of this run can be found in:
npm ERR!     /home/ec2-user/.npm/_logs/2022-10-15T12_22_05_246Z-debug-0.log

Occasionally the NPM update needs to be forced on a fresh install.

$ npm install -g aws-cdk --force
npm WARN using --force Recommended protections disabled.

added 1 package, and audited 2 packages in 1s

found 0 vulnerabilities

SSH Keys will be used for access to GitHub for source code management.

$ ssh-keygen -t rsa
$ cat ~/.ssh/id_rsa.pub
$ eval $(ssh-agent -s)
$ ssh-add ~/.ssh/id_rsa

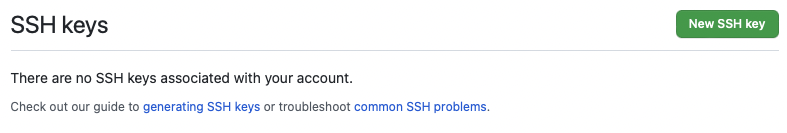

6-GitHub-SSH-Keys

Author setup is required, so pull requests show up as the GitHub user, not the EC2 device.

$ git config --global user.name "John Lukach"
$ git config --global user.email <GitHub Email>
$ git commit --amend --reset-author

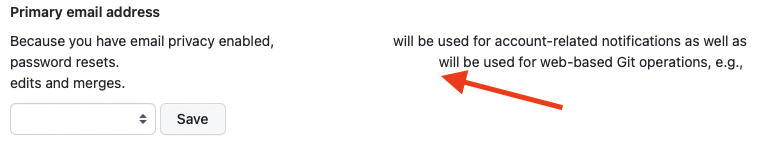

7-GitHub-Privacy-Email

Lastly, Cloud9 leaves temporary files .~c9 if it has issues that we do not want merged.

$ echo .~c9* > ~/.gitignore
$ git config --global core.excludesfile ~/.gitignore
tags: Amazon - AWS - Bastion - CDK - Cloud9 - Linux
